Tuff Country 33130 3" Lift Kit with Front and Rear Coil Spacers (Includes Front Shock Extensions) No Shocks
33130
Pairs well with
Tuff Country 33130 3" Lift Kit with Front and Rear Coil Spacers (Includes Front Shock Extensions) No Shocks
Product Details
Description

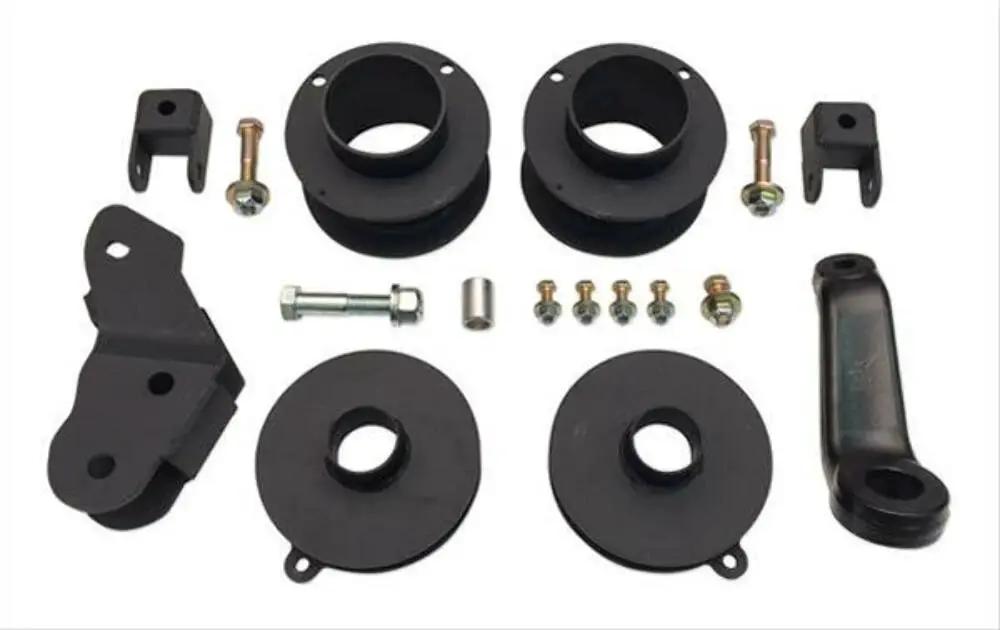

The Tuff Country 33130 3-Inch Lift Kit is a spacer-based suspension upgrade designed for 2014β2018 Ram 2500 4WD owners who want added height and improved off-road capability without replacing shocks. This kit includes front and rear coil spacers, front shock extensions, a Pitman arm, and all necessary hardware. Shocks are not included.
- Lift height: 3 inches of overall lift using precision coil spacers to increase ground clearance and stance.
- Includes front & rear coil spacers: Front and rear spacers that preserve ride quality while delivering the desired lift.
- Front shock extensions: Front extensions keep shock travel aligned with the new ride height for proper articulation.
- Track Bar relocation bracket: Maintains steering geometry and alignment after lifting the front suspension.
- Pitman arm: Includes hardware and a Pitman arm to support accurate steering performance post-lift.
- Hardware bag: All mounting bolts, bushings, and components needed for a complete installation.
- Shocks not included: Designed to pair with your existing shocks or shocks selected to match your preferred ride quality and load).
- Vehicle fitment note: Specifically designed for 2014β2018 Ram 2500 4WD; will not fit Power Wagon models or trucks equipped with factory air ride suspension.
With this 3-inch lift, youβll gain noticeable ground clearance for rugged trails, along with space for larger tires to enhance traction and overall presence. The included track bar relocation bracket and front shock extensions help maintain confident steering and smooth handling after the lift. Since shocks arenβt included, you have the flexibility to select shocks that match your driving styleβwhether youβre chasing daily comfort or weekend off-road adventures. For best results, schedule a professional alignment after installation to optimize ride quality and tire wear.
Vehicle Fitment
| Vehicle | Years | Attributes |
|---|---|---|
| Dodge Ram 2500 | 2014-2018 |
Drivetrain: 4WD Fit. Notes: Will Not Fit Power Wagon Models, Will Not Fit With Factory Air Ride Suspension |
Packaging Details
| SKU | Box | Weight | Length | Width | Height | UPC |
|---|---|---|---|---|---|---|
| TUF-33130 | 1 of 1 | 46 lbs | 21" | 13" | 6" | 698815331305 |
Total Weight: 46 lbs Β Shipping Type: Standard
Bill of Materials
| Description | SKU | Quantity |
|---|---|---|
| Bolt - 7/16"-14 X 1 1/4" | 716114B | 1 |
| Bolt - M18 X 90 Cam with Welded Washer | CAM-18 | 1 |
| Diver Side or Passenger Side Front Coil Spring Spacer | 33118-01 | 2 |
| Driver Side or Passenger Side Rear Coil Spring Spacer | 33130-01 | 2 |
| Front Track Bar Relocation Bracket | 33118-04 | 1 |
| Hardware Bag | 33130NB | 1 |
| Nut - 7/16-14 Unitorque | 716UN | 1 |
| Nut - M18-2.5 Unitorque | M18UN | 1 |
| Pitman Arm | DS2009A | 1 |
| Rear Upper Shock Brackets | 14056-02 | 2 |
| Washer - 3/8" USS Flat | 38WA | 2 |
| Washer - Cam | CAM-19 | 1 |
FAQs
Please read our FAQs page to find out more.
Will this part fit my vehicle?
Fitment varies by year, make, model, drivetrain, and lift height. Always use the vehicle fitment selector or refer to the fitment notes on the product page before purchasing. If youβre unsure, our team can help confirm compatibility.
Are Tuff Country products street legal?
Most Tuff Country products are designed for on-road and off-road use, but local laws and regulations vary by state and country. It is the customerβs responsibility to ensure compliance with local vehicle regulations after installation.
Is professional installation required?
Professional installation is recommended but not required. Many products can be installed by experienced DIYers with proper tools. However, improper installation can affect ride quality, safety, and warranty coverage.
Will this affect my ride quality?
Tuff Country products are engineered to balance ride comfort, performance, and durability. Ride quality can change depending on lift height, vehicle setup, tire size, and other suspension components.
Are Tuff Country products covered by a warranty?
Yes. Tuff Country products are backed by a manufacturer warranty that covers defects in materials and workmanship. Warranty terms vary by product type and do not cover damage caused by misuse, improper installation, or normal wear.
Can I run larger tires with this product?
Many Tuff Country lift kits and suspension components allow for larger tire sizes, but maximum tire clearance depends on wheel offset, tire width, and vehicle configuration. Refer to the product details or contact support for guidance.
What is the return policy?
Unused, uninstalled products may be eligible for return within the stated return window. Items must be in new condition and returned in original packaging. Shipping costs and restocking fees may apply.
Who can I contact if I have questions?
Our customer support team is available to help with fitment questions, installation guidance, and order support. Reach out before purchasing if you want to ensure youβre selecting the right part for your build.
